Description
Application:
Sanitary Filter is mainly appled to protect pumps,instruments,and other device to work regularly.It features compact structure,strong filtering ability,less pressure loss,conveninent maintenance,and is widely used in beverage,pharmacy,dairy and other fields. The angle type filter housing consists of inlet and outlet housing, inner cereen mesh to filter the particulates and impurities which can't pass the mesh.

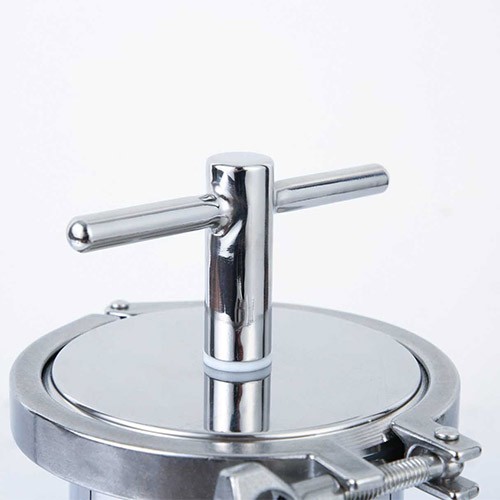

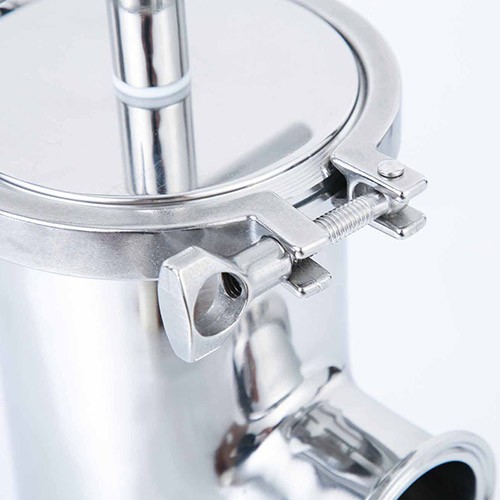

Note:For Security, pls make sure there is no media in pipeline Screw the nut by wrench or jaw, and then take off the clamp, and withdraw the handle together with filter element.Finally , you can do the cleaning and replacement safely.
Advantage of products:
2.Accessories are easy to be installed
3.Problem-free welding and assembly and highest possible strenghth

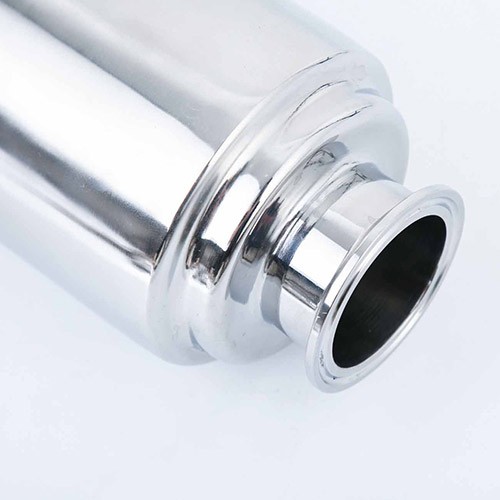

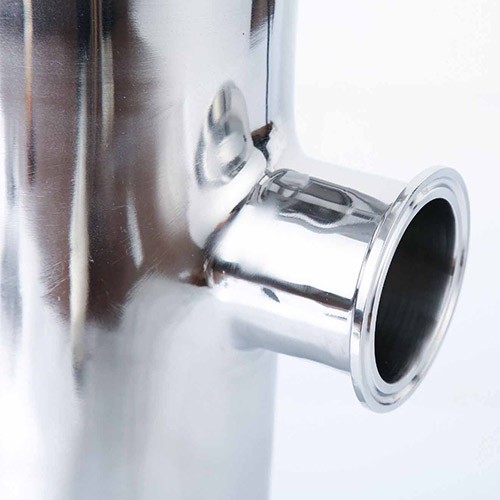

Sanitary Stainless Steel Angle-type Filter
| Connection | Clamp/Thread/Welded |
| Material | SS304/SS316 |
| Size | 1"-4" or DN25-DN100 |
| Type | Angle Type Filter |
| Standard | DIN.SMS.3A |
| Working temprature | -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minutes)14℉ to 248℉ |
| Max pressure | 10Bar,145PIS |
| Gasket | Silicone, FPM,EPDM |
| Surface | Inside RA≤0.8um,Outside: Mirror Polished |
| Application | Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry |
F.A.Q.
|
1. Q: Do you have a factory? |
|
A: Yes, we do. We have our own factory base.
|
|
2. Q: How long is the production cycle? |
|
A: It depends on the machine.The fastest delivery time is within a few days, and the longest delivery time is twenty days. |
|
3. Q: Is there a warranty period? |
|
A: Yes,the warranty period is one year. |
|
4. Q: Can the machine be customized? |
|
A: All machines can be customized according to the customers' needs. |
|
5. Q: Can I have a free sample? |
|
A: Yes, you can. Free samples or discount can be provided for our first friendly cooperation. |
|
6. Q: Do you have technical guidance？ |
|
A: We have professional teams to offer great technical guidance.We can offer free video call to solve technical problems. |
