Description

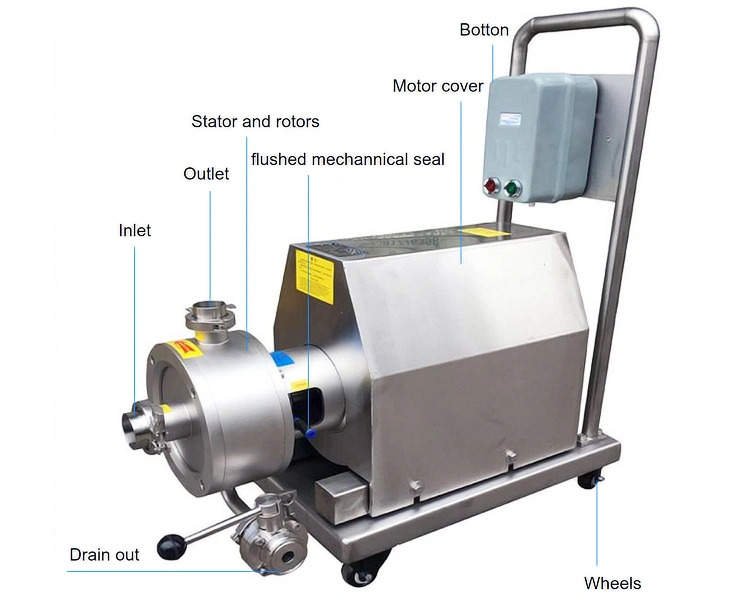

The Kedun series is an in-line continuous production emulsified homogenizing pump consisting of stator and rotor. The treated material will be dispersed, sheared, refined, crushed, emulsified and mixed through 6-10 layers of rotor and stator, homogenization, etc. Compared with the traditional production process, the pump is simpler, more convenient and more optimized. It improves the production efficiency and quality of the material to be treated. Mainly used in food, beverage, pharmaceutical, health care, fine chemicals, coatings, pesticides, daily washing, paper and other industrial fields.
Maximum temperature: -20 ° C to 140 ° C
Material refinement: ≤ 60 GRIT (≈ 300μm) ≤60 mesh (about 300μm)
Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal: single seal and double seal
Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange
Technical Parameters
Maximum flow rate: 50m3/h
Maximum power: 55KWMaximum temperature: -20 ° C to 140 ° C
Material refinement: ≤ 60 GRIT (≈ 300μm) ≤60 mesh (about 300μm)
Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal: single seal and double seal
Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange
Certification: 3-A-02-10 (N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004;
F.A.Q.
|
1. Q: Do you have a factory? |
|
A: Yes, we do. We have our own factory base.
|
|
2. Q: How long is the production cycle? |
|
A: It depends on the machine.The fastest delivery time is within a few days, and the longest delivery time is twenty days. |
|
3. Q: Is there a warranty period? |
|
A: Yes,the warranty period is one year. |
|
4. Q: Can the machine be customized? |
|
A: All machines can be customized according to the customers' needs. |
|
5. Q: Can I have a free sample? |
|
A: Yes, you can. Free samples or discount can be provided for our first friendly cooperation. |
|
6. Q: Do you have technical guidance？ |
|
A: We have professional teams to offer great technical guidance.We can offer free video call to solve technical problems. |
