Sanitary Welding Pneumatic Butterfly Valve

Description

Butterfly valves can be actuated either manually or pneumatically. There is a wide range of

manual controls to meet the different system requirements.

Pneumatic controls can be horizontal and vertical, single-, double effect, and modulating. They can be fitted with control tops and proximity. It is widely applied to many fields,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Technical parameters

Options
1.The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM), and these all comply with

 FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3.Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.

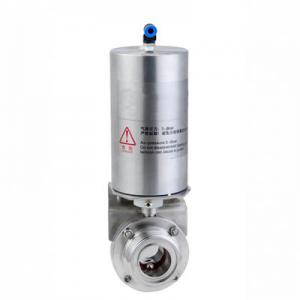

4.Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator(horizontal type), electric actuator.

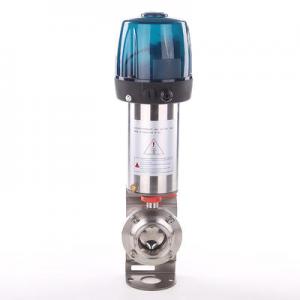

5.Control: position sensor, C-top controller, C-top controller (AS-I)

Features

TPT pneumatic actuators are factory-lubricated for life to ensure a trouble-free service life and 1,000,000 cycles may be expected. However, this applies under ideal conditions. Under real conditions, the service life depends on several factors.

Contaminated air from air compressors and air supply system is the most common cause for shortened life service (solids, water, and oil). This contamination will gradually degrade and wash out the original grease lubricant.  This will shorten the service life, therefore it will be almost impossible to accurately predict the service life.

If the compressed air supply is clean, dry and filtered to 40 microns, the grease will give the seals and components long life without adding oil through an oil mist lubricator.

Lubrication
The oil mist lubrication will extend the life of the actuator, but it will also wash out the original lubrication. Once begun, the oil mist lubrication cannot be discontinued and the lubricator should be regularly checked and maintained. If air lubricators are used, the lubricant selected must be compatible with Nitrile (Buna-N) seals.

Sealed and Unsealed Actuators
Our sealed actuators are maintenance free and our unsealed actuators are available for preventive/corrective maintenance. Life service of a pneumatic actuator is significantly extended only with a grease re-lubrication and replacement  the O-ring seals.

How do I choose the right actuator for my application?
It depends on the number of operation cycles. For example, some actuators may perform hundreds of cycles per hour, whereas others open and close just once a day.

Please take a look at the chart below to make a decision.

Design Features
1. Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2. Available in sizes from DN25 / 1" to DN300 / 12"
3. Multiposition handles can be used for valves up to DN100 / 4";
4. Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
5. Pneumatic actuator and electric actuator are interchangeable.
6. Seals comply with FDA 21CFR 177. 2600.
7. The valve body can be customized with a wide selection of different connections.

Packing & shipping information of the 1" Normally Open Butterfly Valve with Vertical Spring Return Actuation.

Port: Shanghai Port or Ningbo Port,China
MOQ: 1set
Supply ability: 5,000 sets/month
Payment terms: T/T,Western Union, PayPal, L/C
Packaging: Shrink Wrap-Carton Case-Exporting Plywood Case
Delivery time: Depends on quantity
Shipping mode: By sea,by air,by express
